QC12Y/K Series Hydraulic Swing Beam Shearing Machine Model : SN20180717145822566
Have questions?
Contact here by email: [email protected]
Contact here by email: [email protected]
- Product Features

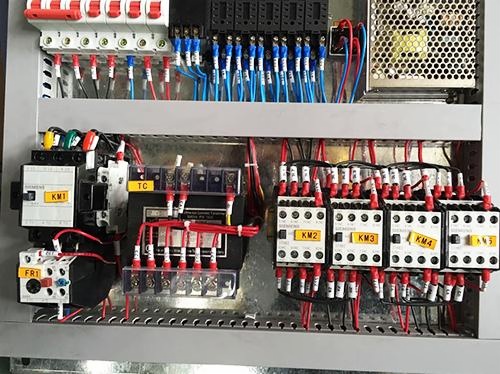

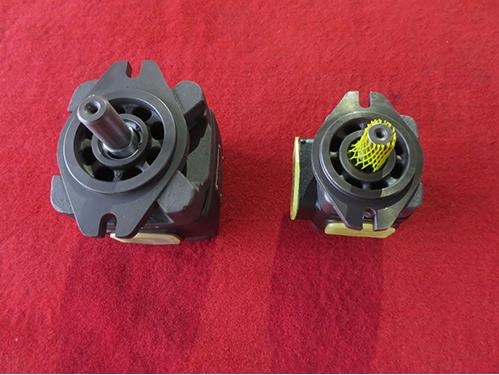

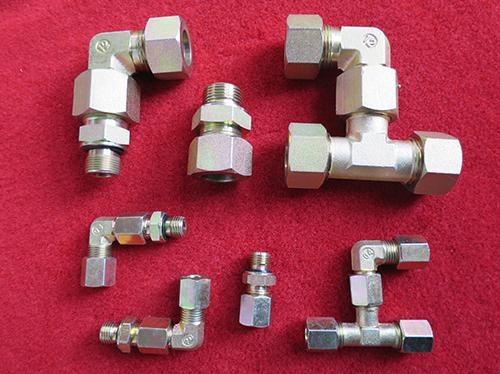

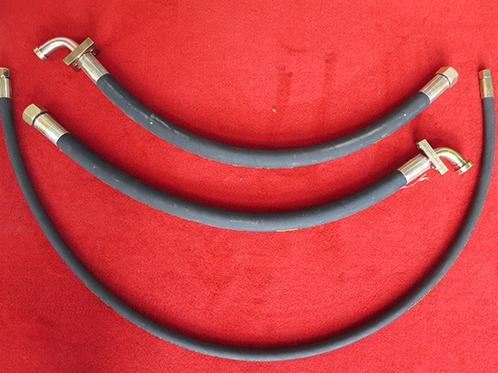

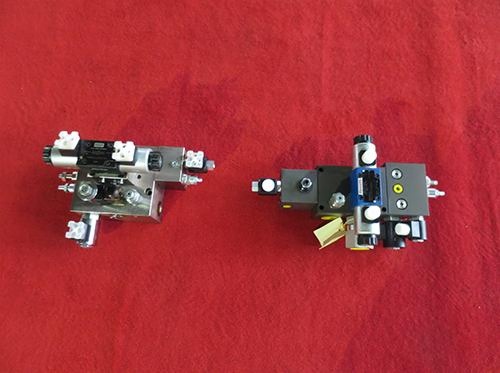

- MAIN CONFIGURATIONS
- Inquiry
Steel plate welded structure, hydraulic drive, nitrogen cylinder return.
Easy to operate, reliable performance, beautiful appearance.

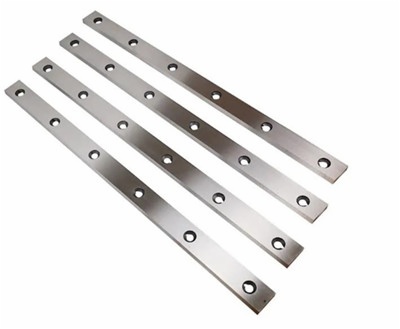

Indicating signs are available for blade clearance adjustment, convenient and fast.
Light alignment illumination device, and can adjust the amount of travel of the upper tool rest in a stepless way.
Fence personal safety protection device adopted at the workspace.

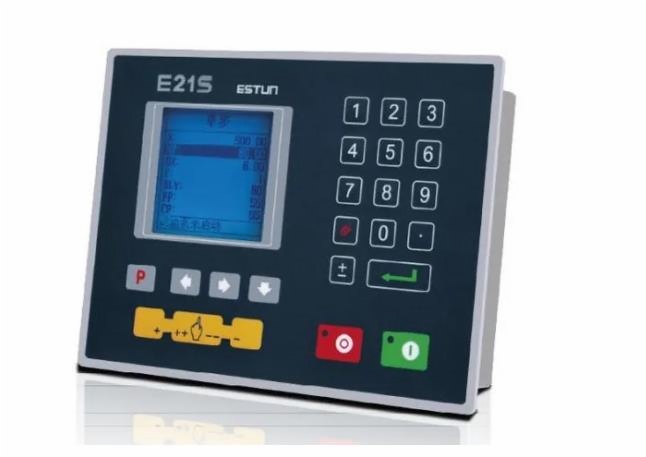

The sizes of rear stoppers are controlled by a micro gear motor, with low noise and accurate positioning, to achieve the best satisfactory results.
Easy to operate, reliable performance, beautiful appearance.
Indicating signs are available for blade clearance adjustment, convenient and fast.
Light alignment illumination device, and can adjust the amount of travel of the upper tool rest in a stepless way.
Fence personal safety protection device adopted at the workspace.
The sizes of rear stoppers are controlled by a micro gear motor, with low noise and accurate positioning, to achieve the best satisfactory results.
|
Specifications
|
ShearingThickness (mm)
|
Shearing Width (mm)
|
Shearing Angle (°)
|
Number of Strokes (min′)
|
Backgauge Range (mm)
|
Main Motor Power (kw)
|
|
QC12Y/K-4×2500
|
4
|
2500
|
1°30′
|
18
|
20-500
|
4.0
|
|
QC12Y/K-4×3200
|
4
|
3200
|
1°30′
|
18
|
20-600
|
5.5
|
|
QC12Y/K-4×4000
|
4
|
4000
|
1°30′
|
12
|
20-600
|
5.5
|
|
QC12Y/K-4×5000
|
4
|
5000
|
1°30′
|
10
|
20-600
|
5.5
|
|
QC12Y/K-4×6000
|
4
|
6000
|
1°30′
|
7
|
20-800
|
7.5
|
|
QC12Y/K-6×2500
|
6
|
2500
|
1°30′
|
18
|
20-600
|
7.5
|
|
QC12Y/K-6×3200
|
6
|
3200
|
1°30′
|
14
|
20-600
|
7.5
|
|
QC12Y/K-6×4000
|
6
|
4000
|
1°30′
|
12
|
20-600
|
7.5
|
|
QC12Y/K-6×5000
|
6
|
5000
|
1°30′
|
10
|
20-600
|
7.5
|
|
QC12Y/K-6×6000
|
6
|
6000
|
1°30′
|
7
|
20-800
|
7.5
|
|
QC12Y/K-8×2500
|
8
|
2500
|
1°30′
|
14
|
20-600
|
7.5
|
|
QC12Y/K-8×3200
|
8
|
3200
|
1°30′
|
10
|
20-600
|
7.5
|
|
QC12Y/K-8×4000
|
8
|
4000
|
1°30′
|
8
|
20-600
|
11
|
|
QC12Y/K-8×5000
|
8
|
5000
|
1°30′
|
7
|
20-800
|
15
|
|
QC12Y/K-8×6000
|
8
|
6000
|
1°30′
|
6
|
20-800
|
15
|
|
QC12Y/K-8×8000
|
8
|
8000
|
1°30′
|
5
|
20-800
|
15
|
|
QC12Y/K-10×2000
|
10
|
2000
|
1°30′
|
12
|
20-600
|
11
|
|
QC12Y/K-10×2500
|
10
|
2500
|
1°30′
|
10
|
20-600
|
11
|
|
QC12Y/K-10×3200
|
10
|
3200
|
1°30′
|
10
|
20-600
|
11
|
|
QC12Y/K-10×4000
|
10
|
4000
|
1°30′
|
8
|
20-600
|
15
|
|
QC12Y/K-12×2000
|
12
|
2000
|
2°
|
12
|
20-600
|
15
|
|
QC12Y/K-12×2500
|
12
|
2500
|
2°
|
10
|
20-600
|
15
|
|
QC12Y/K-12×3200
|
12
|
3200
|
2°
|
9
|
20-600
|
15
|
|
QC12Y/K-12×4000
|
12
|
4000
|
2°
|
8
|
20-800
|
18.5
|
|
QC12Y/K-12×5000
|
12
|
5000
|
2°
|
7
|
20-800
|
22
|
|
QC12Y/K-12×6000
|
12
|
6000
|
2°
|
6
|
20-800
|
22
|
|
QC12Y/K-12×8000
|
12
|
8000
|
2°
|
5
|
20-800
|
30
|
|
QC12Y/K-16×2500
|
16
|
2500
|
2°
|
8
|
20-600
|
18.5
|
|
QC12Y/K-16×3200
|
16
|
3200
|
2°
|
7
|
20-600
|
18.5
|
|
QC12Y/K-16×4000
|
16
|
4000
|
2°
|
5
|
20-800
|
18.5
|
|
QC12Y/K-20×2000
|
20
|
2000
|
2°30′
|
8
|
20-600
|
22
|
|
QC12Y/K-20×2500
|
20
|
2500
|
2°30′
|
6
|
20-800
|
22
|
|
QC12Y/K-20×3200
|
20
|
3200
|
2°30′
|
6
|
20-800
|
30
|
|
QC12Y/K-20×4000
|
20
|
4000
|
2°30′
|
6
|
20-800
|
30
|
|
QC12Y/K-25×2000
|
25
|
2000
|
3°
|
6
|
20-800
|
30
|
|
QC12Y/K-25×2500
|
25
|
2500
|
3°
|
6
|
20-800
|
37
|
|
QC12Y/K-25×3200
|
25
|
3200
|
3°
|
6
|
20-800
|
37
|
|
QC12Y/K-30×2500
|
30
|
2500
|
3°30′
|
6
|
20-800
|
37
|
|
QC12Y/K-30×3200
|
30
|
3200
|
3°30′
|
5
|
20-800
|
45
|
|
QC12Y/K-40×2500
|
40
|
2500
|
3°30′
|
5
|
20-800
|
45
|
|
QC12Y/K-40×3200
|
40
|
3200
|
3°30′
|
5
|
20-800
|
55
|
|
QC12Y/K-50×3000
|
50
|
3000
|
3°30′
|
5
|
20-800
|
75
|
|
QC12Y/K-60×4000
|
60
|
4000
|
3°30′
|
5
|
20-800
|
90
|
