WC67Y Series Simple NC Press Brake Model : SN20180717145822566

Have questions?
Contact here by email: [email protected]
Inquire
  • Product Features
  • MAIN CONFIGURATIONS
  • Inquiry

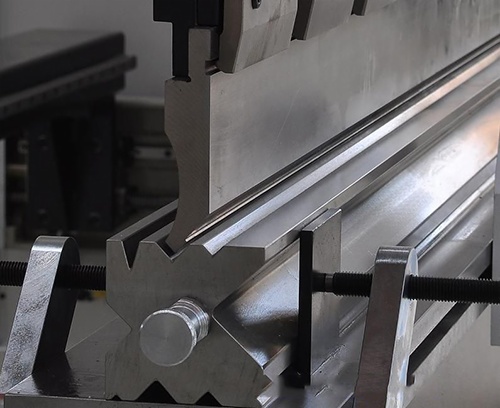

The steel welded structure of the whole machine adopts VSR to eliminate stress, featured by high mechanical strength and good rigidity; twin hydraulic cylinders drive, mechanical block, twisting axis synchronization, smooth and reliable operation, high precision; the rear stopping plate and the upper slider are mounted with encoders; with the help of the digital display system, the positions of the rear stopper and the upper slider can be more accurately displayed, so as to further improve the working accuracy of the machine.
The back stopper and slider stroke are adjusted simply through NC LCD display and manual fine-tuning, equipped with an LCD device, to facilitate the operation;
Specifications Nominal pressure The length of the table
Distance between columns
Throat depth
 Stroke
Max opening height
 Main motor power
kn
mm
mm
mm
mm
mm
kw
WC67Y-63/2500 630 2500 2000 250 100 370 5.5
WC67Y-63/3200 630 3200 2500 250 100 370 5.5
WC67Y-80/3200 800 3200 2500 250 120 380 5.5
WC67Y-100/3200 1000 3200 2500 320 120 400 5.5
WC67Y-100/4000 1000 4000 3000 320 120 400 7.5
WC67Y-125/3200 1250 3200 2500 320 120 400 7.5
WC67Y-125/4000 1250 4000 3000 320 120 400 7.5
WC67Y-160/3200 1600 3200 2500 320 180 450 7.5
WC67Y-160/4000 1600 4000 3000 320 180 450 11
WC67Y-160/6000 1600 6000 4100 320 180 450 11
WC67Y-200/3200 2000 3200 2450 320 200 470 11
WC67Y-200/4000 2000 4000 3000 320 200 470 15
WC67Y-200/6000 2000 6000 4500 320 200 470 15
WC67Y-250/3200 2500 3200 2450 400 250 540 15
WC67Y-250/4000 2500 4000 3000 400 250 540 15
WC67Y-250/6000 2500 6000 4600 400 250 540 15
WC67Y-300/4000 3000 4000 3000 400 250 560 18.5
WC67Y-400/4000 4000 4000 3100 400 250 560 18.5
WC67Y-400/6000 4000 6000 4500 400 250 560 22
WC67Y-500/4000 5000 4000 3100 500 250 600 30
WC67Y-500/6000 5000 6000 4500 500 250 600 30
WC67Y-600/8000 6000 8000 4500 500 300 650 45
WC67Y-800/6000 8000 6000 4500 500 300 650 55
WC67Y-1200/6000 12000 6000 4500 500 300 650 75
As the products are continuously improved, if the technical data is inconsistent with the actual data of product samples, the technical parameters agreement signed by both sides will prevail without notice!
The company offers 1 year warranty and lifetime maintenance for machines sold. We will reach the scene of users in Jiangsu, Zhejiang and Shanghai within 24 hours after receiving customer’s phone call, and within 48 hours in the case of users in remote areas. Customer satisfaction is our service objective! Please feel free to consult us.
